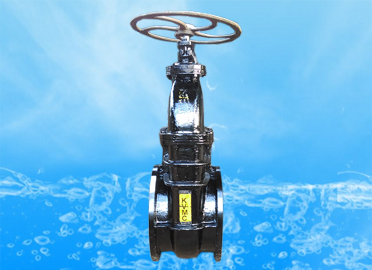

Sluice Valves
- Construction of Materials as specified in the drawing are standard specification also may be provided other than standard, as per requirements.
- Flange ends as per IS : 1583 or customers requirement.
- Spur Gear/Bevel Gear/ Worm gear, electrical actuator, Shoes/channel/position Indicator, Extn. rod with coupling and by pass arrangement are also available
- Manufacturing range: 50 mm to 1200 mm NB
|
IT.NO. |
DESCRIPTION |
Standard MATERIALS & SPECN. |
|
1 |
BODY |
CAST IRON TO IS:210 Gr. FG 200 |
|
2 |
BODY SEAT RING |
LTB. IS:318, LTB-2 / S.S. |
|
3 |
WEDGE |
CAST IRON TO IS:210 Gr. FG 200 |
|
4 |
WEDGE SEAT RING |
LTB IS:318, LTB-2 / S.S |
|
5 |
WEDGE NUT |
LTB IS:318, LTB-2 / H.T. BRASS |
|
6 |
GASKET |
RUBBER / IS: 638 TYPE-B |
|
7 |
BONNET/COVER |
CAST IRON TO IS: 210 Gr. FG 200 |
|
8 |
SPINDLE |
S.S. IS : 6603 12 Cr 13/H.T. BRASS 320 HTB-2 |
|
9 |
PACKING |
GRAPHITED JUTE & HEMP |
|
10 |
GLAND |
CAST IRON TO IS:210 Gr. FG 200 |
|
11 |
HAND WHEEL |
CAST IRON TO IS:210 Gr. FG 200 |
|
12 |
BOLTS & NUTS |
CARBON STEEL |
|
13 |
THRUST PLATE |
CAST IRON TO IS:210 Gr. FG 200 |
|
14 |
CAP |
DO |
