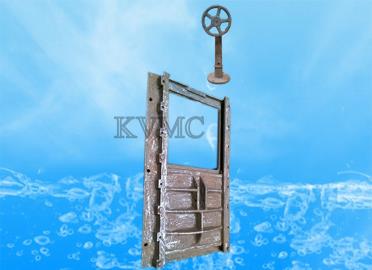

Sluice Gate

Features:

The company stands tall among the reputed Manufacturers and Suppliers of Single Faced Sluice Gates in West Bengal. The Single Faced Sluice Gates are extensively used in water supply, waste water applications, water treatment, intake wells, pumping stations, drainage works, irrigation cannels, effluent treatment, sewage treatment system, flood control, etc. We are capable of delivering bulk orders of the Single Faced Sluice Gates within the allocated time.

MOC : Cast Iron/ S. G. Iron/ Cast Steel

Range : Upto 2400mm

Guide Line For Selection of Sluice Gates

Application	Suitable Water head	Mounting	Specification
For isolation of flow in and out of a closed condutit.	Seating / on seating water head	Spigot back wall mounted	IS : 3042
For isolation of flow in and out of a closed condutit.	Seating / on seating 7 unseating / off-seating water head	Flange back face wall thimble mounted	IS : 13349, Awwa C 501 / Awwa C 560 Bs : 7775
For isolation of flow in and out of an open channel	Seating / on seating water head	Channel side wall mounted	Awwa C 513
For modulation of flow in and out of a closed condutit	Seating / on seating & unseating / off-seating water head	Flange back face wall thimble mounted	IS : 13349, Awwa C 501 / awwa C 560, BS : 7775
For drainage outfall out of a closed condutit	Unseating / off-seating water head	Flange back face wall thimble mounted	-
