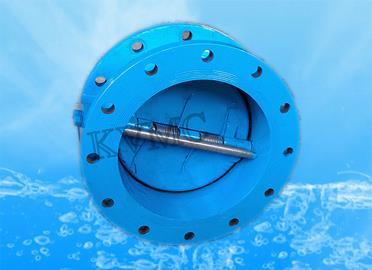

Dual Plate Check Valves
- Construction of Meterials as specifled in the drawing are standard specification also may be provided other than standard, as per requirements.
- Flange ends as per Is 1538 or customers requirement.
- MOC : Cast Iron/ S. G. Iron/ Cast Steel
- Range : 50mm to 2200mm
|
BILL OF MATERIAL |
|||
|
IT. NO |
DESCRIPTION |
MATL |
SPECIFICATION &GRADE |
|
1 |
BODY |
C.I. |
IS:210 GR. FG- 200 / 260 |
|
2 |
DUEL DISC |
||
|
3 |
HINGE PIN |
S.S. |
AISI - 316 |
|
4 |
STOP PIN |
||
|
5 |
PLUG/RETAINER |
||
|
6 |
BODY SEAT |
L.T.B. |
IS:318 Gr. LTB-2/S.S. |
|
7 |
DISC SEAT |
Rubber |
E.P.D.M. |
|
8 |
SPRING |
SPRING STEEL |
|
|
9 |
BODY LUG BEARING |
L.T.B. |
IS:318 Gr. LTB-2 |
|
10 |
DISC LUG BEARING |
||
|
11 |
LIFTING HOOK |
M.S. |
FORGED |
