• Construction of Materials as specified in the drawing are standard specification also may be provided other than standard, as per requirements.
• Flange ends as per IS : 1538 or customers requirement.
• Manufacturing range: 50 mm to 300 mm
• NBMOC : Cast Iron/ S. G. Iron/ Cast Steel

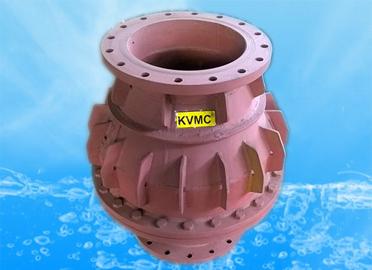

Cast Iron Zero Velocity Valvesare made as per the requirements with pressure rating at 10 kg/Cm2. Flanges drilling is made as per BS10 Table-D / As per IS1538 / ASA CL-150 or customer's specifications.

MOC : Mild Steel

Range : Upto 2200mm

Features:

The company stands tall among the reputed Manufacturers and Suppliers of Single Faced Sluice Gates in West Bengal. The Single Faced Sluice Gates are extensively used in water supply, waste water applications, water treatment, intake wells, pumping stations, drainage works, irrigation cannels, effluent treatment, sewage treatment system, flood control, etc. We are capable of delivering bulk orders of the Single Faced Sluice Gates within the allocated time.

MOC : Cast Iron/ S. G. Iron/ Cast Steel

Range : Upto 2400mm

Guide Line For Selection of Sluice Gates

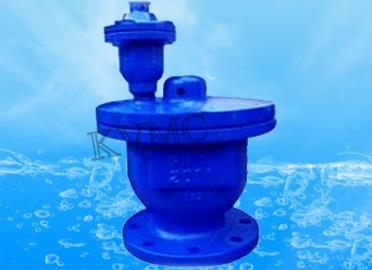

Air Release Valves function to release air pockets that collect at each high point of a full pressured pipeline. Air Release Valves can open against internal pressure, because the internal lever mechanism multiplies the float force to be greater than the internal pressure. This greater force opens the orifice whenever air pockets collect in the valve. Air Release Valves are essential for pipeline efficiency and water hammer protection.


Features:

A streamlined disc profile provides smooth flow and ensures low pressure drop which is designed for strength and deflection eliminates possibility of flutter.

Specifications:

• Size: 15mm to 200 mm
• Specification: General manufacturing standard, IS: 14845/G&K/AWWA: C-512
• Application: Water, Stem Hot Water etc.
• MOC: CI/CS/SS/DI etc.

We are a renowned Globe Valves Manufacturer and Exporter. The Globe Valves offered by us have been fabricated from the best quality raw material, using sophisticated technology. The Globe Valves have found various industrial applications like Industrial Globe Valve, Carbon Steel Globe Valve, Non Return Valves, Cast Iron Valves, Carbon Steel Globe Valve, Cast Steel Non-Return Valve Swing Type, Flanged Ended Non Return Valves is available in diverse sizes, grades, and specifications. Avail the Globe Valves at nominal market prices.

KVMC Valves provides the complete package of valves for projects, hence the product line also includes the most commonly used Globe Valve. We offer a wide range of Globe Valves & gate valves which are manufactured as per the leading Standards. These can be easily customized as per the requirements of our clients by the efforts of our experts.

Specifications:

• Size: 50mm to 200 mm
• Specification: General manufacturing standard IS: 9338
• Application: Water, Oil, Steam etc.
• MOC: CI/CS/SS/DI etc.

Non Return Valves are automatic in operation and designed to prevent reversal of flow in fluid piping systems. The valves are maintained open by the flow of fluid in the forward direction and are closed by back pressure of the fluid or by the weight of the closing mechanism or by a spring force. Various designs are available as listed below.

The range of check valve sizes range from 50mm to massive units of 1200mm dia. The swing check variation is a low pressure drop unit based on a hinged disc. This type of valve is suitable for low velocity applications with infrequent velocity reversals. The valve can be fitted with external weights to allow faster closure to reduce water hammer or shock pressure on flow reversal. External systems can also be included to force the valve closed in the event of a local fire.

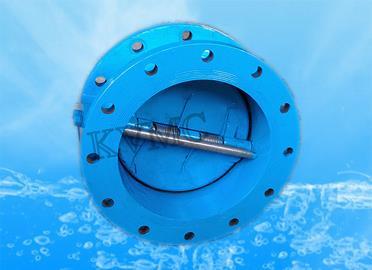

The Dual Plate Check Valve employs two-spring-loaded plates hinged on a central hinge pin. When the flow decreases, the plates close by the action of torsion spring before flow reversal takes place. This design offers the twin advantages of No Water Hammer and Non Slam simultaneously. All features put together make the Dual Plate Check Valve as the most efficient & versatile design. It is also referred to as Silent check valve.

Size:

• 50MM to 600 MM (Swing type check valve)
• 600 MM TO 1200 MM (Multidoor check valve)
• 50 MM TO 1600 MM (Dual plate check valve)
• 50 MM TO 350 MM (Wafer check valve)

Specifications:

• General manufacturing standard, IS: 5312/BS: 5152/BS: 1868/API 594
• Application: Water, Oil etc.
• MOC: CI/CS/SS/DI etc.

• Construction of Materials as specified in the drawing are standard specification also may be provided other than standard, as per requirements.
• Flange ends as per IS : 1583 or customers requirement.
• Spur Gear/Bevel Gear/ Worm gear, electrical actuator, Shoes/channel/position Indicator, Extn. rod with coupling and by pass arrangement are also available
• Manufacturing range: 50 mm to 1200 mm NB
